Start by attaching the roof section to the driver and passenger side panels with 8 screws and nuts. It may be necessary to manipulate the bends to obtain a correct fit.

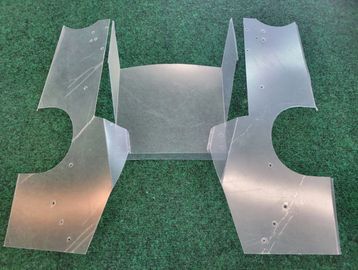

Roof and side panels assembled.

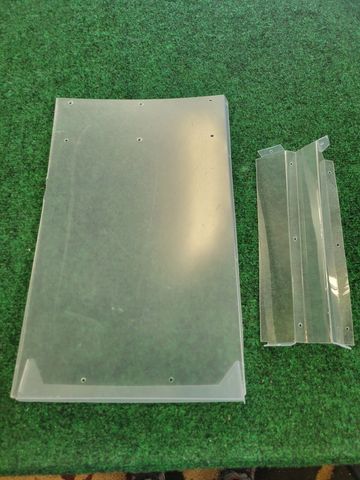

Attach rear brace to the center section with 6 screws and nuts. Again, the bends may need to be manipulated to obtain the correct fit.

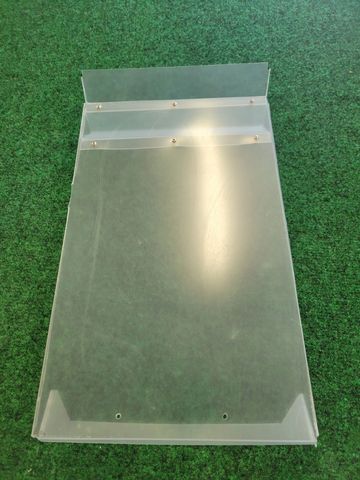

Completed center section.

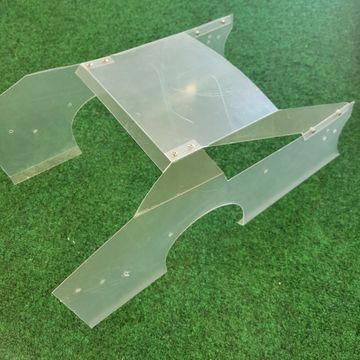

Attach center section to either the driver or passenger panels with 8 screws and nuts. Repeat for the opposite side.

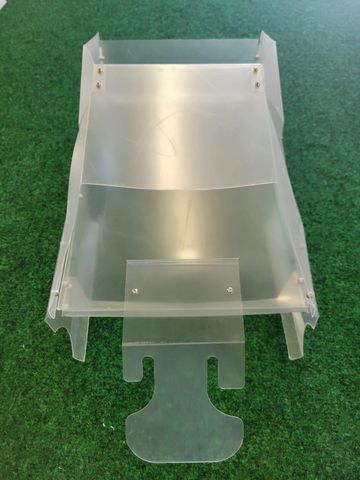

Attach front piece to center section with the remaining 2 screws and nuts.

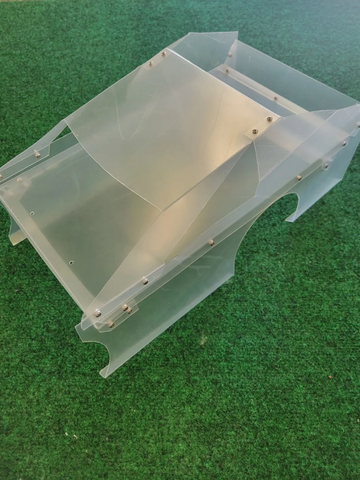

Completed body.

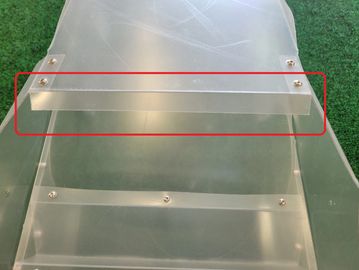

The roof panel rear bend can be adjusted to increase or decrease rigidity of the roof.

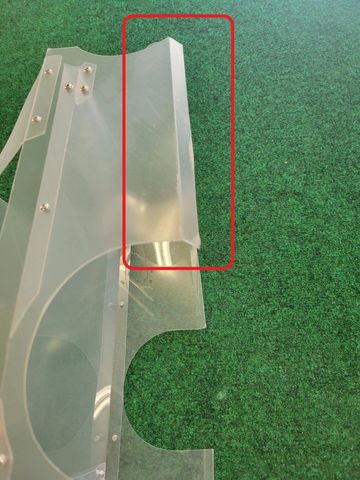

The side panel bends can be adjusted for body clearance, recommend to fold to a 90 degree angle if running carpet or high bite surfaces.
